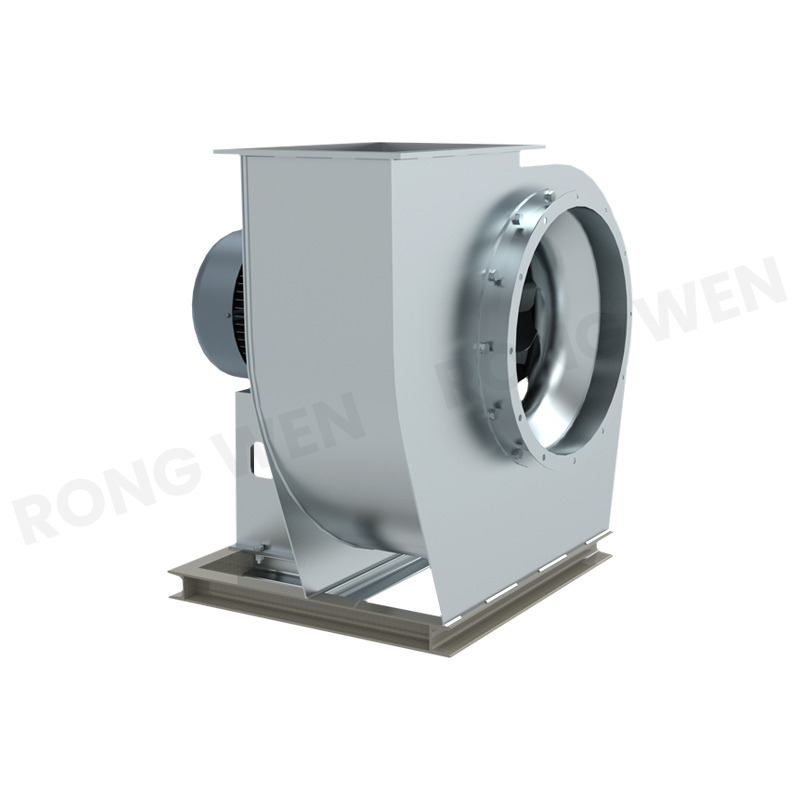

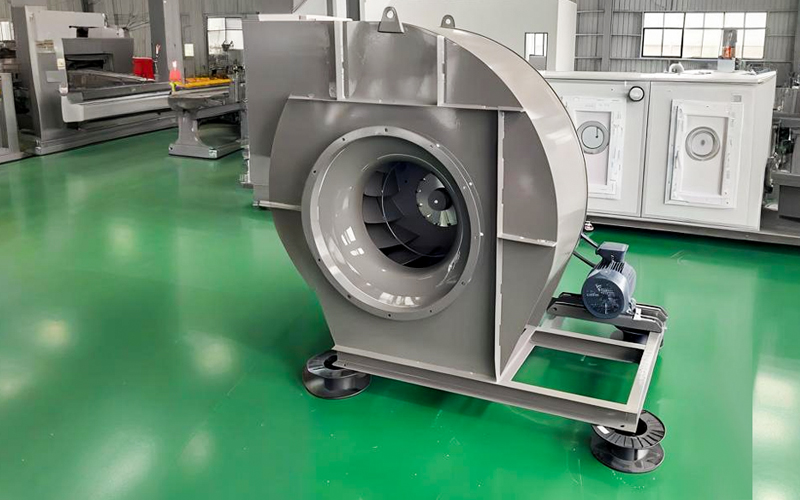

Product Description
Technical Specifications
Airflow Range: 990-226,500 m³/h
otal Pressure Range: 180-3,350 Pa
Motor Power: Varies by model
Speed: 960-2,900 r/min
Inlet Temperature: ≤80°C
Materials: Carbon steel, stainless steel, or alloy steel
Drive Methods: Direct coupling, belt drive, bearing housing
Installation Method: Base-mounted
Impeller Type: Backward inclined single inlet
Transmission Types: Available in A, C, D, and E configurations
Applications
Environmental Protection: Suitable for dust removal and gas extraction in various industries.
Ventilation: Ideal for air circulation in factories, buildings, and other facilities.
Industrial Furnaces: Used for air supply and exhaust in industrial furnace applications.
Chemical Industry: Suitable for ventilation and gas handling in chemical processes.
Other: Also used in coating equipment, metallurgical plants, and petrochemical facilities.
Features
Efficiency: High efficiency due to backward inclined blades.
Low Noise: Designed for quiet operation.
Durability: Robust construction for long service life.
Customization: Available in various sizes and materials to meet specific needs.
Product Structure
Impeller: Made of high-quality carbon steel with backward inclined blades, ensuring high efficiency and low noise. Each impeller undergoes rigorous static and dynamic balancing.
Casing: Constructed from steel plates, with a durable finish to prevent rust and corrosion.
Inlet Collector: Designed for smooth air intake with minimal resistance.
Transmission Components: Include shafts, bearings, and pulleys or couplings, depending on the transmission type.
Operating Conditions
Suitable for gases that are non-flammable, non-explosive, and non-corrosive to steel.
Maximum operating temperature: 80°C.
Gas should contain no more than 150 mg/m³ of dust or hard particles.
Certifications
Meets standards for general-purpose centrifugal fans (JB/T 10563-2006).
Fire-resistant models comply with GA 211-2009 for fire smoke exhaust applications.
Explosion-proof models are certified to EXd II BT4 standards.
Customization Options
Corrosion-resistant Models: Available in fiberglass or stainless steel for corrosive gas environments.
Explosion-proof Models: Equipped with explosion-proof motors for hazardous environments.
Special Sizes: Custom dimensions and larger models can be manufactured upon request.
 |  |  |
 |  |  |
