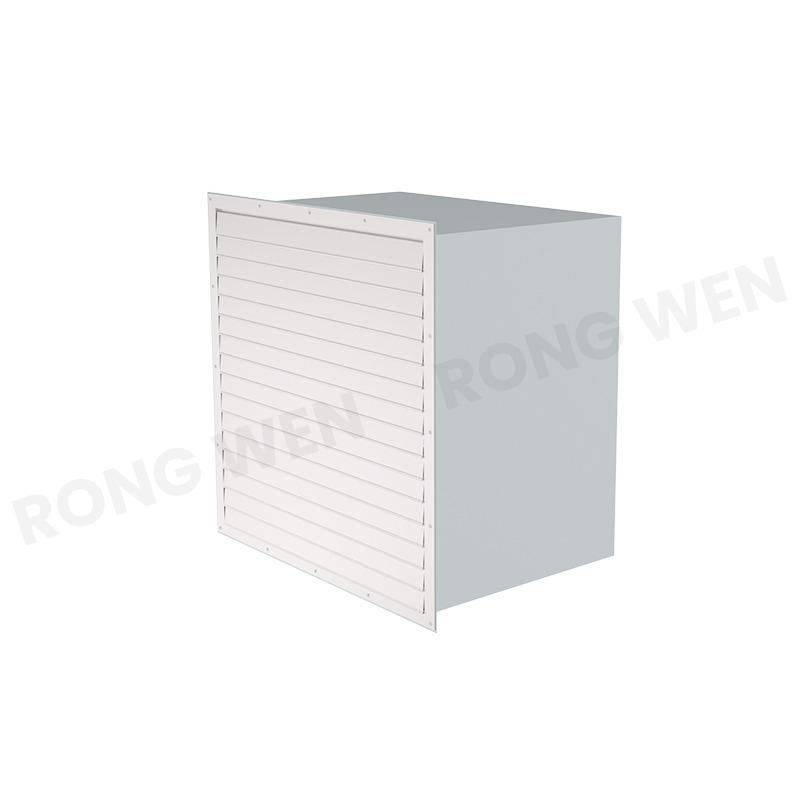

DFBZ (XBDZ) Type Wall-mounted Axial Flow Fan

Name: DFBZ (XBDZ) Type Wall-mounted Axial Flow Fan
Rating: 5.0 (64 reviews)

Product Overview

The DFBZ Type Wall-mounted Axial Flow Fan features a forward-curved impeller with wide blades of large chord length. Its spatially distorted, inclined blade design allows for the required airflow and pressure to be achieved at low speeds, reducing noise emissions. The fan's outer casing is square, while the inner casing is round, further minimizing noise. Designed for wall installation, the fan includes aluminum alloy rainproof louvers on the wall-facing side, preventing the ingress of outdoor rainwater and natural winds into the indoor space.

To meet the demands of different operating environments, the fan can be modified into the BDFBZ Type Explosion-proof Axial Flow Fan. This variant is suitable for areas with non-corrosive, flammable, and explosive gases, and it carries an explosion-proof rating of Exd II BT4 or Exd II CT4.

Download

Product Description

Product Operating Conditions

Temperature Range: -20°C to +45°C
Humidity: Less than 99%
Medium Conditions:
Standard Type: Non-corrosive, non-flammable, and non-explosive gases (dust content not exceeding 100mg/m³)
Explosion-proof Type: Non-corrosive gases containing flammable and explosive substances (dust content not exceeding 100mg/m³)
Corrosion-resistant Type: Corrosive gases (no dust)
Power Supply: Three-phase / 380V / 50Hz (or other voltage options available to meet international standards, such as 415V/50Hz or 480V/60Hz, depending on local requirements)
