As an engineer or procurement manager, you face critical thermal management decisions daily. Choosing the wrong fan type leads to premature system failure. It causes excessive energy consumption. It often results in inadequate thermal management for expensive equipment. You might naturally ask which fan technology is superior. However, "better" is a fundamentally flawed premise in aerodynamics.
The choice between centrifugal and axial designs depends entirely on your system's resistance. Engineers call this static pressure. You must weigh this resistance against your required air volume, commonly known as CFM. Neither fan is universally perfect. They simply serve different physical environments.
We will introduce a clear framework to evaluate both technologies below. You will learn to assess them based on objective performance metrics and operating environments. This comprehensive guide strips away marketing claims. It equips you to make mathematically sound decisions for your next complex engineering project.
Performance Trade-off: Axial fans deliver high airflow (CFM) at low static pressure, while centrifugal fans excel at overcoming high system resistance.
Efficiency Leaders: The backward curved centrifugal fan offers peak energy efficiency for high-pressure industrial applications without motor overloading risks.
Cost vs. Complexity: Axial designs generally have lower upfront costs and simpler footprints, but centrifugal blowers provide superior durability in ducted or contaminated environments.
Decision Rule: Selection must be driven by your specific system impedance curve, not baseline specifications.
Moving air in an open room presents very little challenge. Almost any rotating blade will succeed. However, industrial and commercial applications rarely involve empty spaces. Moving air through resistance forms the true engineering challenge. Your system likely includes thick HEPA filters, dense heat sinks, or complex ductwork. These components restrict airflow. They create friction and directional changes. We measure this collective resistance as system impedance.
You cannot select a fan based solely on its maximum airflow rating. You must define a specific success criteria. Success occurs at the exact intersection of the fan's performance curve and your system's impedance curve. We call this intersection the operating point. At this precise spot, the fan generates enough pressure to push the required air volume through all physical obstacles.
Miscalculating this operating point carries severe consequences. If you underestimate system resistance, the fan will fail to deliver adequate cooling. This leads to overheating components. Worse, it triggers aerodynamic stall. Stall happens when airflow separates from the fan blade profile. It causes aggressive turbulence. The fan loses efficiency instantly. Noise levels spike. Excessive vibration can eventually tear the assembly apart. Motor burnout also becomes a high probability. Furthermore, an improperly matched fan runs inefficiently. It will likely fail strict regulatory noise and energy compliance standards.
Axial fans represent the most common air-moving devices in consumer and light commercial electronics. The core mechanics are incredibly straightforward. Air enters the fan parallel to the rotating axis. It then exits in the exact same parallel direction. The blades generate aerodynamic lift, much like an airplane propeller. This straightforward path allows axial fans to move massive volumes of air quickly.
These devices operate best in free-air scenarios. They thrive in low-restriction environments. Ideal applications include spot cooling for individual machines. You often find them ventilating simple heat exchangers. They cool standard server racks perfectly, provided those racks lack dense cabling. General room exhaust systems also rely heavily on axial technology.
When you implement an axial fan, you must understand the practical realities. You will experience several distinct advantages. They offer a highly compact footprint. You can easily mount them flush against flat panels. They boast a lower initial purchase price. Their lightweight construction simplifies structural mounting requirements.
However, axial fans carry significant drawbacks. You will notice a steep drop in performance when introducing them to backpressure. They struggle immensely to push air through dense filters. If system resistance increases unexpectedly, axial fans become highly susceptible to stalling. A simple clogged intake filter can completely destroy their aerodynamic efficiency. They are simply not built for heavy-duty resistance.

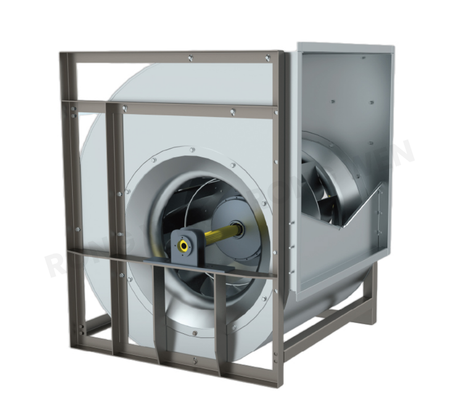

When resistance becomes your primary obstacle, you must change your aerodynamic approach. Centrifugal fans operate on a completely different mechanical principle. Air enters the fan axially, just into the center of the impeller. However, the spinning blades exhaust the air radially. It exits at a strict 90-degree angle. This process utilizes centrifugal force. It converts kinetic energy into substantial static pressure.
This design makes them the ultimate choice for handling harsh environments. They easily push air through tightly woven dense filters. They maintain consistent airflow across extremely long duct runs. These heavy-duty blowers also excel at handling particulate-heavy airstreams. The mechanical structure forces air out with enough pressure to overcome almost any standard industrial impedance.
If you prioritize energy conservation, you must focus on specific impeller designs. The Backward Curved Centrifugal Fan stands out prominently. Engineers recognize this specific impeller design as the industry standard. It dominates high-efficiency, continuous-duty operations. The blades curve away from the direction of rotation. This unique geometry allows air to flow smoothly through the wheel. It minimizes turbulence and maximizes energy transfer.
One critical feature sets the backward curved design apart. It possesses a "non-overloading" power characteristic. The motor demands peak power near the middle of its performance curve. If system resistance suddenly drops to zero, the power requirement actually decreases. The motor will not overload. It will not burn out. This makes it a highly reliable and exceptionally safe choice for variable conditions. You can deploy it confidently in systems where filters clog slowly over time.
Understanding individual fan mechanics only solves half the problem. You must evaluate how these technologies compare directly across critical engineering dimensions.
You can clearly see the differences on a standard performance chart. Axial fan curves often feature a distinct "dip". We identify this as the stall region. You must strictly avoid operating the fan near this dip. It creates erratic airflow and extreme vibration. Conversely, centrifugal curves appear much smoother. They remain generally stable across a significantly wider pressure range. They deliver predictable airflow even when system impedance fluctuates dramatically.
Physical constraints often dictate your final selection. Axial fans feature a straight-through design. They save considerable space. You can drop them directly into thin enclosure walls. Centrifugal fans require more thoughtful integration. Forward-curved models strictly require a protective scroll housing to direct the air. Backward-curved motorized impellers require a specific plenum setup. They need ample radial space to exhaust the air properly. This distinct 90-degree turn directly impacts your overall enclosure design.
Noise regulations frequently drive component selection in modern engineering. Axial fans tend to generate higher-frequency noise. Operators often perceive this higher pitch as louder or far more irritating. It easily penetrates thin enclosure walls. Centrifugal fans generally produce lower-frequency noise. This broadband, low-rumble profile feels less intrusive. Furthermore, low-frequency sound is much easier to attenuate. You can silence it effectively using standard acoustic duct lining.
Industrial applications demand strict durability evaluations. You must assess long-term maintenance needs. Centrifugal units generally prove more robust. They survive better in harsh, dusty, or high-moisture environments. Their motors often sit entirely out of the contaminated airstream. If you operate in explosive environments, you must address ATEX or hazardous location compliance. Centrifugal designs offer easier adaptations for spark-resistant construction.
| Evaluation Dimension | Axial Fan | Centrifugal Fan |
|---|---|---|
| Airflow Path | Straight-through (Parallel) | 90-degree turn (Radial) |
| Static Pressure Capacity | Low to Medium | Medium to Extremely High |
| Acoustic Profile | Higher frequency, irritating pitch | Lower frequency, easier to mask |
| Space Requirement | Compact, flat enclosure mounting | Larger footprint, requires plenum/scroll |
| Stall Risk | High risk if resistance surges | Low risk, highly stable curve |
Selecting the right technology on paper guarantees nothing. Poor implementation ruins excellent hardware. You must approach the procurement phase with strict data verification protocols.
Do not rely solely on bold marketing numbers. Spec sheets often highlight "maximum CFM" or "maximum static pressure." These isolated numbers mean nothing. A fan never achieves maximum airflow and maximum pressure simultaneously. You must demand full performance curves from your vendors. Plot your exact impedance directly onto their published charts.
You must also anticipate real-world integration risks. Inlet and outlet conditions drastically alter performance. We call this the "system effect." Placing a centrifugal blower too close to an enclosure wall destroys its radial exhaust path. Similarly, starving an axial fan of adequate inlet air will aggressively degrade its stated performance. The fan will choke. Always maintain minimum clearance guidelines provided by the manufacturer.
Establish a rigorous checklist before finalizing any purchase. Follow these strict next-step actions:
Calculate your exact system impedance. Account for every filter, bend, and heat sink.
Map your required operating point on the manufacturer's precise performance curve.
Evaluate the continuous energy consumption at your specific operating point to ensure long-term efficiency compliance.
Request prototype samples or computational fluid dynamics (CFD) data from the manufacturer. Verify airflow paths digitally before cutting metal.
Neither fan technology reigns universally superior. Your application environment dictates the correct choice entirely. Axial fans provide unmatched volume for low-resistance scenarios. They save space and reduce initial equipment budgets. However, they fail rapidly when forced to push air through significant obstacles.
For complex industrial processes, ducted HVAC systems, or highly filtered environments, Centrifugal Fans are the mathematically sound investment. Specifically, backward curved models deliver the exact high-pressure efficiency modern systems demand. They protect your motors. They reduce irritating noise. They push air relentlessly through heavy impedance.
Do not guess your system resistance. Encourage your team to consult with an application engineer today. Model your specific system impedance curve meticulously before initiating procurement. A precise calculation now prevents catastrophic thermal failures tomorrow.
A: It usually requires a significant physical redesign. A standard centrifugal unit turns the airflow 90 degrees, drastically changing your enclosure's layout. You cannot easily swap them drop-for-drop unless you utilize an inline centrifugal fan designed specifically for straight-through ducting.
A: It depends entirely on your operating point. A backward curved centrifugal impeller operates highly efficiently at high static pressure. Conversely, if an axial fan fights high pressure, it will stall, waste immense electrical energy, and eventually risk catastrophic motor failure.
A: Specific impeller designs, particularly those utilizing radial blades, allow heavy particulates to pass straight through. Dust rarely adheres to these fast-spinning radial profiles. Axial blades, however, easily accumulate dust on their leading edges. This buildup quickly ruins their delicate aerodynamic profile.
A: The stall region defines the zone where airflow separates from the blades and becomes violently turbulent. In this zone, aerodynamic efficiency plummets. Noise and vibration levels spike dramatically. Axial fans remain particularly sensitive to stalling if you miscalculate your actual system pressure.
