Views: 0 Author: Site Editor Publish Time: 2026-06-21 Origin: Site
Selecting the right fan for industrial and commercial systems carries immense stakes. A poor choice does more than simply restrict airflow in your facility. It severely compromises overall system efficiency, accelerates premature motor failure, and drives up daily operational energy consumption. Engineers face a critical balancing act during design. You must carefully weigh total static pressure requirements against precise volumetric airflow demands, often measured in CFM. Furthermore, you must achieve this balance within rigid spatial constraints and challenging acoustic limits. Finding the perfect aerodynamic fit is rarely a simple task. This guide breaks down the core mechanical differences between fan designs. We will explore inherent performance limitations, structural features, and specific environmental criteria. Ultimately, you will learn how to specify the exact equipment necessary for a stable, high-performing application.
Fan selection cannot happen in a vacuum. Proper specification requires matching the specific fan performance curve against your unique system resistance curve. An air movement system constantly resists flow. As air travels through complex networks, it loses energy. You must account for this energy loss to maintain desired volumes.
Every duct, damper, and filter creates friction. This friction generates static pressure. As you push more air through a system, the resistance increases exponentially. A fan operates exactly where its aerodynamic curve intersects your system resistance curve. If you miscalculate the resistance, the fan will operate off its design point. This leads to severe performance degradation.
To pinpoint the correct equipment, you must establish clear baseline metrics. We highly recommend defining these parameters before looking at manufacturer catalogs.
Underestimating system static pressure creates catastrophic failures. It is a common mistake in industrial ventilation. If you place a standard axial fan into a highly resistive duct network, the fan will stall. Aerodynamic stall occurs when airflow separates from the fan blades. The fan spins aggressively, but airflow drops to near zero. This wastes massive amounts of electricity. The trapped rotational energy turns into severe vibration. Consequently, the motor overheats and eventually burns out.

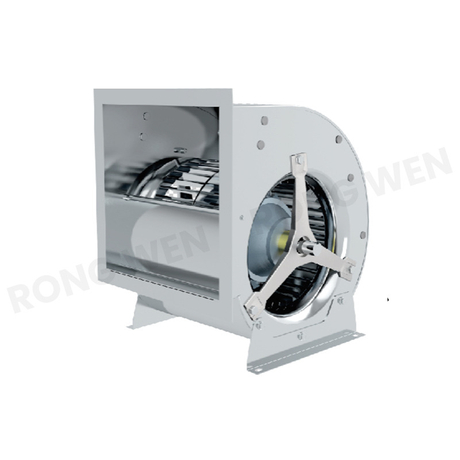

Centrifugal designs operate using fundamentally different physics than their axial counterparts. They rely on centrifugal force to move air. Air enters the center of the rotating impeller. The impeller blades catch the air and spin it outward radially. This action vastly increases the kinetic energy of the air stream. The surrounding scroll housing captures this high-velocity air. The housing smoothly expands, slowing the air down. This deceleration converts kinetic energy into high static pressure.
The 90-degree airflow path is the defining characteristic here. Air enters parallel to the shaft but exits perpendicular to it. This geometry naturally builds tremendous pressure. It allows these fans to push heavy air streams through highly restrictive environments. The rigid scroll housing also provides excellent structural integrity.
The internal impeller design dictates performance. Engineers select specific blade profiles to match the environmental demands.
These units excel in demanding industrial sectors. You will find them driving extensive underground ductwork and air pollution control systems. They provide forced drafts for massive commercial boilers. Industrial drying processes also rely heavily on them. In situations requiring deep bed filtration, a robust Centrifugal Blower Fan is absolutely required to overcome severe system resistance.
Axial designs prioritize sheer volume over pressure generation. Their mechanics closely resemble an airplane propeller. Air flows straight through the housing, moving strictly parallel to the central motor shaft. Because the airflow never changes direction, the fan achieves high volumetric efficiency with minimal structural housing.
The propeller draws air in and pushes it out in a straight line. The blades generate aerodynamic lift, much like an aircraft wing. This lift forces the air forward. Since the air does not undergo a complex energy conversion inside a scroll housing, pressure remains relatively low. However, the open design allows massive amounts of air to pass through quickly.
Manufacturers categorize axial models based on their housing structure and internal guide features.
Axial units dominate open-air and low-resistance cooling applications. They are the standard choice for industrial cooling towers and massive warehouse exhaust systems. Commercial heat exchangers use them to pull ambient air across finned coils. Server rooms also rely on them for rapid, high-volume equipment ventilation.
Choosing between the two technologies requires evaluating multiple engineering dimensions simultaneously. You must look beyond simple airflow numbers. Let us compare them across four critical categories.
| Evaluation Dimension | Centrifugal Design | Axial Design |
|---|---|---|
| Static Pressure Capability | Dominates high-resistance systems (filters, long ducts). Can easily exceed 10+ inches WG. | Restricted to low-to-moderate resistance. Standard models fail rapidly above 2 inches WG. |
| Space and Footprint | Requires larger, distinct housings. The 90-degree exhaust dictates specific ducting layouts. | Offers an inline, highly compact footprint. Fits directly into straight duct runs seamlessly. |
| Peak Efficiency Applications | Provides maximum efficiency in continuous, heavy-duty, high-pressure industrial applications. | Provides peak efficiency when moving massive volumes of free air with minimal resistance. |
| Acoustic Profiles | Generates higher-frequency noise. This noise easily bounces off standard duct silencers. | Generates lower-frequency noise. Harder to attenuate, easily travels through building structures. |
The primary divider is pressure tolerance. Radial centrifugal models excel in high-resistance environments. They force air through dense HEPA filters and complex scrubbers effortlessly. Axial units strictly belong in low-resistance zones. If you restrict an axial fan, it loses stability and surges.
Mechanical room space often dictates the final choice. Axial models offer an inline footprint. You can slide a tubeaxial unit directly into an existing straight duct. Centrifugal models demand more floor space. The large scroll housing and perpendicular exhaust require complex transitions. Engineers must plan for 90-degree ducting offsets during the facility design phase.
Both fan types can be highly efficient when applied correctly. Power consumption profiles differ drastically based on the system curve. Backward-inclined centrifugal impellers offer peak electrical efficiency for continuous, heavy-duty applications. Their aerodynamic profile requires less motor torque at high pressures. Conversely, axial units operate most efficiently when moving large volumes at zero static pressure.
Noise mitigation strategies depend heavily on the fan type. Axial units tend to generate a low-frequency drone. Low-frequency sound waves carry massive energy. They easily penetrate concrete walls and travel along metal ductwork. Centrifugal units generally produce higher-frequency noise. While the raw decibel output might be loud at the source, high-frequency sound waves lack penetrating power. You can mitigate this noise easily using standard fiberglass duct silencers and acoustic wrapping.
Real-world conditions quickly destroy poorly specified equipment. Air streams in industrial facilities are rarely pristine. You must account for suspended solids, explosive gases, and routine maintenance requirements.
Heavy dust loads present a severe risk to rotating equipment. Abrasive particles cause rapid blade erosion. When material sticks to a fan blade, it creates severe weight imbalance. This imbalance destroys bearings within weeks. Axial units fail exceptionally fast in heavy particulate environments. The material wraps around the central hub and destroys the motor cooling fins. For material handling, specific radial centrifugal designs are strictly required. Their flat blades violently throw material outward, preventing dangerous accumulation.
Consider the long-term serviceability of the equipment. Inline axial units sit inside the ductwork. If a motor fails, maintenance crews must completely dismantle the surrounding duct system to reach the unit. This causes severe facility downtime. Centrifugal configurations place the motor completely outside the airstream. Mechanics can easily inspect belts, grease bearings, and swap external motors without ever opening the actual ductwork.
Handling combustible dust or volatile chemical fumes requires strict safety compliance. Standard steel impellers can strike the housing and create sparks, triggering massive explosions. You must rely on recognized industry standards, such as AMCA (Air Movement and Control Association) classifications. AMCA Type A, B, and C spark-resistant constructions use non-ferrous materials like aluminum or specialized alloys. You must specify these spark-resistant centrifugal or axial units for any hazardous location.
Narrowing down your options requires a systematic approach. Follow this straightforward decision framework to eliminate improper choices early in the design phase.
Evaluate your system resistance first. Calculate the friction losses across your entire duct network. If your total static pressure exceeds standard thresholds—typically greater than 2 to 3 inches of water gauge (WG) for general commercial applications—you must eliminate standard axial units immediately. They cannot handle the backpressure.
Analyze the chemical and physical makeup of the air. Ask yourself what exactly is passing through the fan. If the air contains heavy sawdust, highly corrosive chemical gases, or extreme industrial heat, standard commercial fans will fail. You must default to robust Centrifugal Fans. Ensure you specify appropriate epoxy material coatings and specialized high-temperature bearings.
Review the physical installation space. If mechanical room space is severely limited, a bulky centrifugal unit might be impossible to install. If pressure is moderate but space is tight, evaluate premium vaneaxial units. Vaneaxial units serve as an excellent mechanical compromise. They fit inline like a standard axial but deliver higher pressure tolerances.
Do not finalize your design based on estimates. Once you complete the preliminary assessment, consult a manufacturer's digital selection software. Alternatively, contact an applications engineer directly. Provide them with your exact CFM target, total static pressure, facility altitude, and airstream temperature. These precise data points allow them to finalize the specification securely.
The choice between axial and centrifugal technologies is never about one being inherently superior to the other. Your selection is strictly dictated by the system's unique aerodynamic resistance and precise volumetric requirements. Upfront engineering analysis prevents disastrous long-term operational failures. Accurately mapping your system curve ensures you select equipment optimized for energy efficiency and mechanical longevity. Take the time to gather accurate field data before making a purchase. We highly encourage you to download technical spec sheets, utilize online aerodynamic sizing calculators, or contact an engineering sales team for a custom system review today.
A: Yes, but only in short, low-resistance duct runs, or by using high-end vaneaxial models. Standard axial fans will stall under high static pressure. If your duct system includes multiple elbows or dense filtration, you must upgrade to a more robust design to prevent motor failure.
A: It depends entirely on the system curve. Centrifugal fans with backward-curved blades are highly efficient for pressure-heavy systems. Conversely, axial fans are far more efficient for moving large volumes of free air in open environments with zero ducting.
A: Not necessarily. While centrifugal fans can produce higher decibels at the source, their noise is higher-frequency and much easier to dampen. Axial fans produce low-frequency noise. This low-frequency drone easily travels through building structures and is incredibly difficult to eliminate.
A: This is a specific aerodynamic feature found in backward-inclined centrifugal fans. It ensures the motor will not draw excessive current, even if system resistance drops unexpectedly. This safety feature thoroughly protects the equipment from burning out during sudden pressure changes.
