Industrial facilities and high-demand HVAC systems constantly battle heavy system resistance. Maintaining reliable airflow in these environments proves critical for daily operational success. Efficiency drop-offs or sudden motor failures quickly cause massive downtime. These failures also bring unexpected financial loss. Engineers need robust components. They must solve high-pressure, continuous-operation demands without faltering.
This guide offers a technically grounded, objective evaluation. We explore backward curved designs thoroughly. You will uncover their exact aerodynamic mechanics. We detail their operational limitations and expected financial return on investment. We structured this resource clearly. We aim to help system engineers and facility buyers make highly informed shortlisting decisions.
Mechanical Distinction: Blades tilt away from the direction of rotation, creating a highly stable radial airflow with no stall point on its performance curve.
Operational Safety: Features a "non-overloading" power characteristic, meaning the motor will not overheat or overload even if system pressure fluctuates unpredictably.
Efficiency Benchmark: Delivers up to 85% static efficiency, significantly lowering long-term energy consumption compared to traditional alternatives.
Implementation Reality: Upgrading requires a complete assembly replacement (impeller and hub design), but typically yields a 10–15% energy reduction and improved static pressure handling.

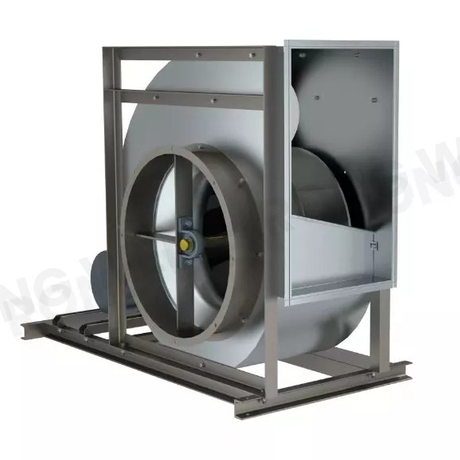

Understanding a Centrifugal Blower requires examining its physical curvature. The blades specifically curve away from the rotational direction. As the wheel spins rapidly, the convex face generates positive pressure. This force pushes air outward radially. Simultaneously, the concave face creates negative pressure. This action draws intake air in continuously. The combined fluid dynamics create a stable, 90-degree radial airflow. The air exits the housing smoothly. This aerodynamic mechanism reduces chaotic turbulence at the discharge point.
Fluid dynamics provide a critical operational benefit here. The performance curve of a backward curved design lacks a stall point. Forward curved alternatives often hit a stall zone. When system resistance spikes, they lose their ability to move air efficiently. The backward curved design ignores this limitation. It operates safely across a much wider range of conditions. You maintain smooth performance without dangerous airflow disruptions. Engineers value this predictability in variable-air-volume systems. It ensures stable ventilation even when duct resistance changes unexpectedly.
We must define the "non-overloading" power characteristic. As airflow reaches its absolute maximum, the power requirement peaks. After hitting this peak, the power demand drops off naturally. This inherent mechanical trait protects your drive motor. The motor will not burn out during unexpected pressure drops. If a filter tears or a duct opens, resistance plummets. A standard fan would pull excess amperage and destroy its motor. A backward curved model limits its own power draw. You secure reliable operational safety automatically.
You need hard data to justify component selection. Let us examine the proven benefits.
High Static Efficiency: These units easily reach up to 85% static efficiency. This massively reduces long-term energy consumption. Continuous-duty applications benefit immensely. You lower overall operational expenditures significantly over the equipment lifecycle.
Self-Cleaning Properties: The unique blade angle fundamentally reduces turbulence. It minimizes dust and debris accumulation on the wheel itself. Dirt cannot stick easily to the backward-facing convex curves. This makes them highly viable for industrial dust collection. They also serve cleanrooms effectively by preventing particle buildup.
Engineering always involves compromise. We must acknowledge specific trade-offs.
Higher CAPEX: Complex manufacturing processes define these units. Precision welding and dynamic balancing require more labor. This makes them initially more expensive than traditional "hamster wheel" designs.
Acoustic Profile: They move massive volumes of air at high speeds. This generates higher noise levels in specific frequency bands. Dust extraction setups often hit 65 dB(A). Lower-pressure alternatives might only produce 55 dB(A). You must plan acoustic mitigation accordingly.
Operational Footprint: Superior aerodynamics require space. These assemblies often demand a larger physical footprint. Compact forward-curved models fit into tighter spaces easily. You must verify your mechanical room dimensions before upgrading.
We can contrast the baseline performance metrics directly. Backward curved models operate at roughly 85% static efficiency. Forward curved units typically peak between 55% and 65%. This efficiency gap translates into massive electrical variations over a decade. High-demand facilities cannot afford 60% efficiency. They waste too much power moving baseline air volumes.
Understanding curve behavior prevents critical system failures. Compare them closely.
Forward Curved: You see a steep drop in pressure as flow increases. They remain highly sensitive to system resistance. A dirty filter easily causes a severe stall risk. Airflow plummets abruptly.
Backward Curved: You see a much flatter pressure-flow curve. They maintain stable airflow consistently. Even when filter resistance or duct pressure spikes, airflow drops only marginally. They fight back against heavy resistance.
Match the design to your commercial reality. Forward curved units suit low-pressure, high-volume scenarios perfectly. Budget-constrained indoor air handling units utilize them well. Conversely, backward curved Centrifugal Fans act as the mandatory standard elsewhere. High-pressure, variable-resistance environments demand them. Data centers and heavy industrial exhaust systems rely exclusively on this non-overloading technology.
| Feature | Backward Curved | Forward Curved |
|---|---|---|
| Static Efficiency | Up to 85% | 55% – 65% |
| Pressure Curve | Flat, highly stable | Steep, stall-prone |
| Motor Overload Risk | Zero (Non-overloading) | High (Sensitive to pressure drops) |
| Best Application | Heavy industry, data centers | Standard commercial AHUs |
Assess your exact system resistance carefully. Determine if the facility needs sustained output at extreme pressure ranges. These units excel between 2,500 and 3,000 Pascals (Pa). Mapping your ductwork friction losses provides a baseline. You avoid undersizing the equipment. A properly mapped system guarantees the unit operates near its peak efficiency point.
Evaluate your airstream comprehensively. Standard carbon steel fails under extreme conditions. Extreme heat or corrosive environments mandate specialized materials. Detail the necessity of duplex stainless steel or heavy-duty nickel alloys. You must also consider protective add-ons. Wear and erosion liners extend impeller life in abrasive dust streams. Heat spinners protect bearings by dissipating thermal energy before it reaches the drive system.
Highlight strict mounting tolerances constantly. Ignored clearances destroy aerodynamic performance instantly. You must guarantee smooth airflow entering and exiting the housing. Specify strict engineering standards during installation:
Maintain a minimum clearance of 0.5 times the fan diameter (0.5D) on the inlet side. Any obstruction here chokes the intake and creates harsh turbulence.
Ensure a hydraulic diameter of at least 2.2 times the fan diameter (2.2D) on the discharge side. This allows the exiting air to stabilize properly inside the ductwork.
Ignoring these rules causes system vibration. Vibration leads to premature bearing failure and shattered efficiency ratings.
We must address a very common procurement question. You cannot simply swap forward-curved blades for backward-curved ones. The aerodynamic profiles fundamentally clash. Upgrading requires a complete assembly replacement. You must replace the impeller, the hub, and often the scroll housing itself. Sometimes, the entire plenum chamber requires modification. The inlet ring must match the backward-curved cone perfectly. Failing to match these components causes extreme air leakage. Do not attempt a partial retrofit.
Frame your business case using realistic upgrade data. Maintaining equivalent airflow while increasing static pressure handling drives long-term payback. Consider a facility upgrading its exhaust system. They need to maintain 10,000 CFM. However, they install heavier filtration, pushing resistance from 1 inch to 3 inches water gauge.
A properly sized backward-curved upgrade handles this new pressure easily. It typically yields a 15% reduction in kilowatt (kW) consumption compared to forcing an old unit to overwork. This energy reduction drives substantial financial returns over five years. It justifies the heavy initial investment completely. Motor longevity also improves due to the non-overloading characteristics. You spend far less on emergency electrical repairs.
Backward curved designs represent a strategic investment in facility stability. They offer unmatched efficiency. They provide robust motor protection for high-resistance systems. You eliminate stall risks entirely. You also secure a non-overloading power curve.
Your next steps require precise engineering measurements. Calculate your exact system resistance meticulously. Measure available installation clearances using the strict 0.5D/2.2D rules. Finally, consult directly with manufacturers regarding specific material configurations. Ensure your selected alloys match your airstream conditions perfectly before finalizing any procurement.
A: No. The impeller design, hub geometry, and necessary aerodynamic clearances differ completely. You require a full assembly replacement. The inlet ring and scroll housing must match the specific blade profile to prevent massive efficiency losses.
A: The convex blade curvature generates minimal turbulence. It does not "scoop" air like a forward-curved blade. This natural flow path resists the buildup of dirt and particles. It significantly reduces your mandatory maintenance intervals.
A: It guarantees that maximum power consumption peaks safely within the normal operating range. If system pressure drops abruptly, the fan will not draw excess current. This design effectively eliminates the risk of catastrophic motor burnout.
A: They offer strong installation flexibility. They can mount in a standard scroll housing to help convert dynamic pressure into static pressure. Alternatively, you can use them as unhoused plug fans directly inside a plenum chamber.
