Industrial material handling and extreme exhaust environments demand unyielding, heavy-duty equipment. When airstreams carry heavy dust, abrasive scrap, or intense heat, standard ventilation systems quickly fail. Build-up and erosion destroy delicate airfoil designs. You need a robust mechanical solution to prevent catastrophic downtime. The radial blade fan acts as the undisputed workhorse for these brutal conditions. We classify it as a specialized structural subset within the broader category of Centrifugal Fans. Engineers design them specifically for harsh areas where curved blades simply cannot survive. This comprehensive guide explores mechanical trade-offs, aerodynamic stability, and essential specification criteria. Procurement and engineering teams will learn exactly how to evaluate these units. We will break down operational limits and help you match the right fan geometry to your most challenging industrial airstreams.
Structural subset: Radial blade fans are a specialized type of centrifugal fan featuring straight, non-curved blades extending from a central hub.
Primary advantage: Their "self-cleaning" geometry makes them highly resistant to clogging and abrasion in dust-heavy, high-temperature, or particulate-laden airflows.
Engineering trade-off: They deliver exceptionally high static pressure and reliability but require higher energy consumption and generate more noise than curved alternatives.
System stability: Radial designs resist aerodynamic stall better than complex airfoil shapes, ensuring stable operation even under fluctuating system resistance.
To understand the radial fan, you must examine its physical construction. The design prioritizes brute strength over delicate aerodynamic efficiency. This structural simplicity offers massive advantages during heavy-duty operations.
A standard radial impeller looks distinctly different from standard commercial fans. It typically features 6 to 12 deep, heavy, and narrow flat blades. These blades project straight outward from the central hub like spokes on a wheel.
Heavy industry operators use several interchangeable terms for this equipment. You might hear them called "paddle wheel" fans, "steel plate" fans, or "open-wheel" fans. These names change depending on specific backplate configurations. Open-wheel designs lack a front shroud. This allows fibrous materials like paper trim to pass through freely. Steel plate versions incorporate heavy backing plates. They provide extra structural integrity for high-pressure operations.
Air movement relies on pure rotational force. Air enters the housing parallel to the drive shaft. The spinning impeller grabs this air. Centrifugal force then throws the air outward at a strict 90-degree angle. The air exits through a reinforced discharge duct.
This straight blade design minimizes available surface area. Sticky materials, wet dust, or heavy moisture cannot easily cling to the metal. The high-speed rotation actively flings debris off the flat surfaces. Engineers call this a natural "self-cleaning" effect. It drastically reduces maintenance intervals in dirty environments.
Complex aerodynamic fans often suffer from aerodynamic stall. Stall happens when airflow detaches from the blade surface. This causes violent vibration and a sudden drop in performance. Radial blade fans resist this phenomenon exceptionally well.
The independent, widely spaced radial blades prevent "stall propagation." If one straight blade experiences localized stall due to airflow disruption, the issue stays isolated. It does not trigger a cascading systemic stall. Complex airfoil shapes, conversely, often suffer from violent pipeline resonance. Engineers call this resonance "breathing." A radial design maintains stable operation even under wildly fluctuating system resistance.
Engineering teams must evaluate different centrifugal wheel types before finalizing procurement. We evaluate these options based on flow, pressure, and operational stability. The comparison chart below outlines the basic aerodynamic trade-offs.
| Fan Design | Blade Geometry | Primary Strength | Best Application |
|---|---|---|---|
| Radial Blade | Straight, flat, radiating outward | Self-cleaning, extreme static pressure | Material handling, heavy dust |
| Forward Curved | Curved toward rotation direction | High volume, compact size | Clean air, HVAC systems |
| Backward Curved | Curved away from rotation | High efficiency, non-overloading | Clean industrial exhaust, large AHUs |

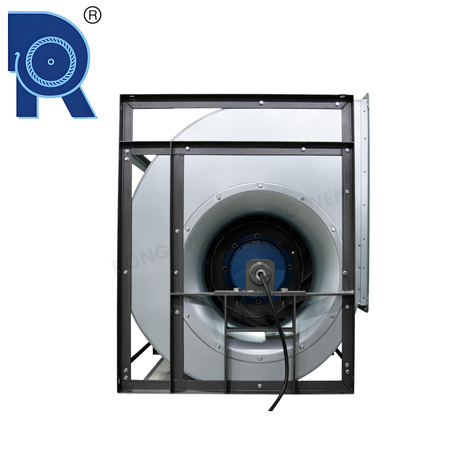

A Forward Curved Centrifugal Fan utilizes dozens of small, scooped blades. These blades tilt forward toward the direction of rotation. This geometry moves massive air volumes at relatively low static pressures.
These forward curved units are highly space-efficient. They work perfectly in clean environments like commercial HVAC systems. However, their small blade spacing makes them terrible for industrial exhaust. Dust builds up instantly. Both forward and radial designs also share an "overload" risk. If system resistance drops suddenly, the motor pulls unregulated amounts of air. This causes an unconstrained spike in horsepower demand. A suddenly opened damper can quickly burn out the motor.
Backward-curved fans feature blades tilting away from the rotation direction. They offer the highest aerodynamic efficiency among centrifugal designs. They also provide "non-overloading" characteristics. Motor horsepower peaks and then drops, protecting the electrical system.
You must consider the trade-off. Backward-curved fans cost less to operate electrically. Yet, their complex, overlapping blade shapes easily trap debris. They remain highly susceptible to rapid erosion in harsh environments. Abrasive particles destroy airfoil edges quickly. For dirty airstreams, the rugged radial fan remains the necessary and safest choice.
Every mechanical design involves compromises. Understanding these pros and cons prevents costly installation errors. You should specify a radial fan only when the environment demands its unique strengths.
Extreme Static Pressure: Heavy-duty processes require massive force. Radial fans easily overcome severe system resistance found in long, complex industrial ductwork. They push air through thick filtration media without hesitation.
Durability & Lifespan: You gain the lowest maintenance frequency in abrasive environments. Thick steel construction outlasts optimized airfoils. Straight blades resist the constant scouring action of sand, wood chips, and metal dust.
High-Temperature Tolerance: Industrial furnaces demand specific equipment. Radial impellers boast heavy mass and robust thermal expansion resistance. They maintain structural integrity even when exhausting extremely hot gases.
Lower Energy Efficiency: Moving air using blunt-force straight paddles requires immense power. This blunt aerodynamic profile demands higher motor horsepower compared to curved alternatives.
Acoustic Profile: Aggressive air-cutting generates high turbulence inside the housing. Radial fans operate significantly louder than backward-curved designs. Facilities often require additional sound enclosures to meet safety regulations.
Larger Footprint: High pressure demands large casing dimensions. A radial unit requires a bulky physical housing. It also demands heavy-duty permanent mounting infrastructure to handle vibrational loads.
Radial fans dominate specific industrial sectors. Standard commercial fans fail within days under these harsh conditions. We see radial designs successfully deployed across three primary applications.
Material Handling & Pneumatic Conveying: Manufacturers use air to transport solid goods. Radial fans easily move wood chips, paper trim, and heavy grain. Industrial scrap passes directly through the fan housing. The open-wheel design prevents clogging during continuous operation.
High-Dust & Filtration Systems: Massive dust collectors require reliable prime movers. Radial fans pull air through dense baghouses. They handle cement grinding dust extraction. Steel mills rely on them for rigorous sintering processes. The self-cleaning blades prevent dangerous imbalances.
Corrosive/High-Heat Exhaust: Chemical processing plants expel hazardous fumes. Power generation facilities require robust boiler exhaust fans (typically under 500MW). Manufacturers often build these radial fans using exotic alloys. They line the housings using specialized wear-resistant materials to prolong equipment life.
Selecting the right impeller geometry solves only half the problem. Poor installation ruins fan performance. You must account for systemic risks and drive mechanisms during the engineering phase.
Airflow needs space to stabilize. We strongly warn against poor inlet or outlet duct geometry. You should never place elbows or abrupt transitions too close to the fan inlet. Air entering unevenly creates severe turbulence. This drastically reduces the unit's ability to generate high static pressure. A bad duct layout completely negates the radial fan's primary advantage. Follow industry guidelines and provide straight duct lengths equal to multiple duct diameters before the inlet.
You must evaluate drive configurations carefully. Engineers usually choose between belt-driven and direct-drive setups.
| Drive Type | Maintenance Requirements | RPM Adjustability | Footprint |
|---|---|---|---|
| Belt-Driven | High (requires belt tensioning/replacement) | Excellent (change pulleys to adjust speed) | Larger |
| Direct-Drive | Low (motor connects directly to shaft) | Limited (requires Variable Frequency Drive) | Compact |
Belt-driven fans allow easy RPM adjustments. You simply swap the pulleys to change performance. Direct-drive units offer lower maintenance. They require a Variable Frequency Drive (VFD) if you want to alter the airflow speed.
Standard carbon steel rarely survives extreme applications. You must specify customized construction elements. Chemical plants often demand anti-sparking construction to prevent explosions. Mining operations require abrasion-resistant (AR) steel plates to combat rock dust. Specialized surgeless designs help accommodate strict compliance targets. Proper material selection guarantees you hit target longevity metrics.
Choosing the wrong fan causes endless operational headaches. Engineering buyers should use a simple matching framework to narrow down their options. Review your operational parameters before finalizing quotes.
If you need maximum efficiency for clean air over long operational hours: Specify a Backward Curved Fan. It saves energy and protects your motor from sudden overloads.
If you need compact size and high air volume in a low-pressure, clean environment: Specify a Forward Curved Centrifugal Fan. It fits tight spaces and runs quietly.
If you are moving heavy particulates, corrosive gases, or operating in extreme heat/abrasion: Specify a Radial Blade Fan. Accept the higher energy draw in exchange for unbreakable reliability.
Radial blade fans dominate heavy industrial applications for a clear reason. They sacrifice sleek aerodynamic efficiency to achieve unparalleled physical toughness. While they demand more motor horsepower, their unmatched durability makes them the only viable choice for abrasive, particulate-heavy airstreams. You cannot afford delicate curved blades in a steel mill or a pneumatic conveying line.
Your next step requires careful site evaluation. We encourage buyers to audit their system's total static pressure accurately. Assess your exact particulate load and measure available space constraints. Address ductwork layouts to eliminate system effect factors. Gather this data before finalizing specifications or requesting a technical quote. Proper preparation ensures you purchase a machine capable of lasting decades.
A: Radial fans are a specific sub-category of centrifugal fans. All radial fans are centrifugal, but not all centrifugal fans are radial. They share the same basic operating principle but differ drastically in internal blade geometry.
A: Axial fans move air parallel to the shaft. They provide high volume at low pressure, much like a standard desk fan. Radial fans draw air in and expel it outward at 90 degrees. They deliver lower volume but extremely high pressure, making them ideal for heavy ductwork.
A: The straight blades lack the tight pockets or sweeping curves where sticky materials, dust, or moisture typically accumulate. Furthermore, the immense centrifugal force from high rotational speed naturally flings abrasive debris off the flat metal blades.
