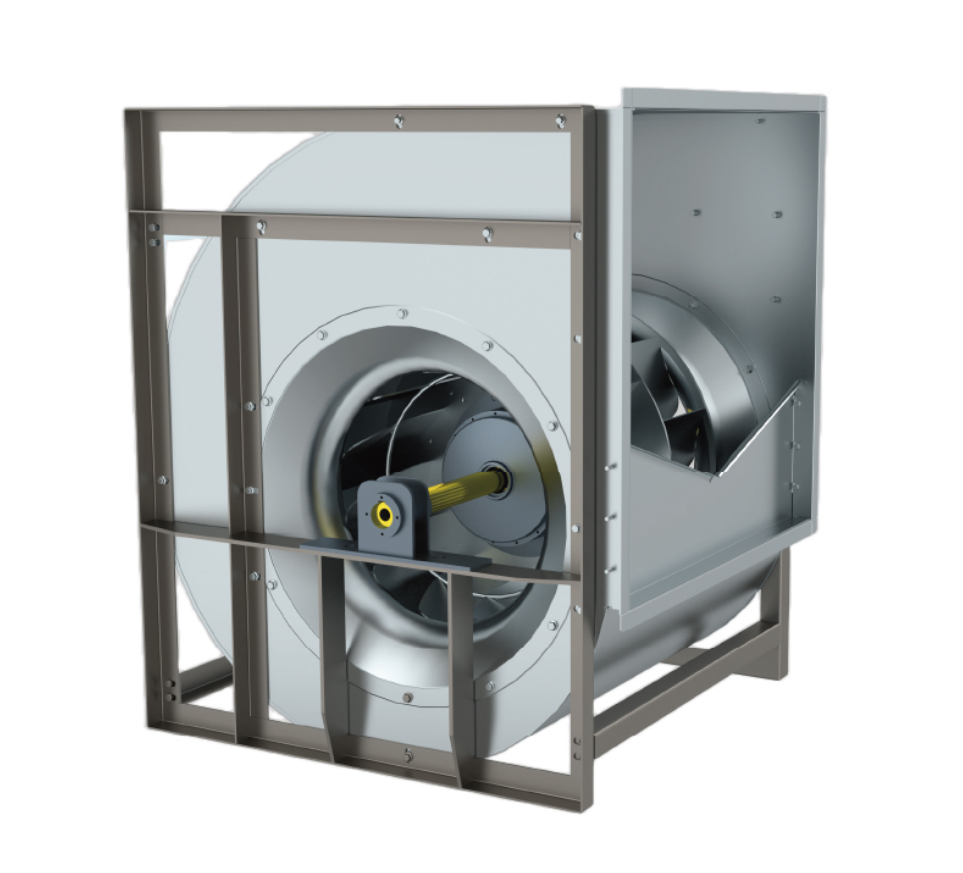

Misalignment causes premature bearing failure, mechanical seal degradation, and excessive vibration in industrial ventilation systems. Eliminating belts reduces maintenance, but a direct drive centrifugal fan introduces strict shaft-to-shaft alignment tolerances. You cannot rely on visual estimates when installing high-speed rotating equipment. Failure to verify and correct alignment during installation or post-maintenance leads to catastrophic equipment failure, unplanned downtime, and increased energy consumption. When shafts operate out of alignment, they generate severe radial and thrust loads. These forces destroy internal components long before their engineered lifespan ends. This guide details the technical frameworks, precision measurement methods, and operational variables required to accurately check and establish alignment. We cover everything from dial indicators to laser alignment, ensuring your ventilation assets achieve maximum reliability and operational efficiency.
Precision is Non-Negotiable: Direct drive arrangements require alignment tolerances often measured in thousandths of an inch (mils); visual checks are insufficient for operational reliability.
Soft Foot is the Prerequisite: Accurate alignment cannot be achieved or checked without first verifying and correcting motor soft foot and baseplate integrity.
Thermal Growth Matters: Alignment checks must account for the thermal expansion of the motor and fan housings during standard operating temperatures.
Configuration Dictates Method: The alignment verification process varies significantly between standard coupling-driven arrangements, a plug fan, and an external rotor centrifugal fan.
Proper alignment occurs when the motor shaft centerline and the fan shaft centerline form a single, continuous straight line under normal operating conditions. We call this collinearity. This state must exist while the equipment runs at full temperature and under full aerodynamic load. Achieving collinearity prevents abnormal stress on the coupling and the supporting bearings.
Misalignment carries a steep mechanical cost. An exponential relationship exists between the degree of misalignment and vibration severity. As offset or angularity increases, vibration velocity and acceleration spike. This vibration directly reduces the Mean Time Between Failures (MTBF) for the bearings. A fan bearing designed to last 100,000 hours fails in less than 5,000 hours if subjected to continuous misalignment forces. The rollers skid, the cages deform, and the lubricant breaks down rapidly under the localized heat generated by abnormal loading.
Energy consumption rises when shafts sit out of alignment. Coupling bind creates internal resistance. The motor works harder to overcome this added friction, drawing higher amperage. Over months of continuous operation, this parasitic load impacts overall system efficiency and inflates facility power costs. You pay for the electricity to destroy your own equipment.
Original Equipment Manufacturers (OEMs) mandate documented alignment checks during commissioning. Submitting a formal alignment report proves the equipment was installed correctly. If a bearing fails prematurely and you cannot produce a laser alignment or dial indicator report, the manufacturer voids the warranty. Documenting these checks protects your capital investment and provides a baseline for future vibration analysis.
Vibration Severity and Bearing Impact
| Misalignment Condition | Vibration Velocity (in/sec) | Expected Bearing Life Reduction | Operational Recommendation |
|---|---|---|---|
| Excellent (Within Tolerance) | 0.01 - 0.08 | None (Meets L10 Life) | Standard Operation |
| Marginal (Slightly Out) | 0.15 - 0.25 | 25% - 40% Reduction | Schedule Correction |
| Severe (Visible Offset) | 0.40 - 0.60+ | 70% - 90% Reduction | Immediate Shutdown |
Before attaching a dial indicator or laser system, establish a stable mechanical baseline. Skipping preparation steps guarantees inaccurate alignment readings and forces you to repeat the entire process.
Mandatory safety isolation procedures come first. Implement strict Lockout/Tagout (LOTO) protocols before interacting with the fan or motor shafts. Disconnect the power at the main breaker, apply your physical lock, and attempt to start the motor locally to verify a zero energy state. Never reach across an uncoupled shaft without LOTO in place.
Verify the rotation direction. Perform an uncoupled motor bump test. Energize the motor for a fraction of a second to confirm the shaft spins in the correct direction. This prevents reverse thrust loads and aerodynamic failure once you connect the coupling. Running a centrifugal impeller backward severely damages the wheel and overloads the motor.
Inspect the foundation and baseplate. Verify the grout integrity beneath the steel base. Look for cracks, voids, or oil degradation. Check the baseplate flatness with a precision machinist level. Ensure no structural resonance exists that could amplify vibration. A weak foundation makes alignment impossible because the machinery shifts as soon as it powers up.
Ensure all fan bearings sit fully secured to the pedestal. The coupling halves must mount flush to the shaft ends. Tighten all set screws and locking collars to the manufacturer's specified torque before taking any baseline measurements. Clean the shafts and coupling hubs with a wire brush and solvent to remove rust or paint that could throw off your indicator readings.
Correcting soft foot is the most critical pre-alignment step. Soft foot occurs when the motor feet do not sit flat on the baseplate. Parallel soft foot means the foot is flat but elevated. Angular soft foot means the foot sits at an angle relative to the base.
Mount a dial indicator on a magnetic base and rest the needle on the top of the motor foot.
Zero the dial indicator.
Loosen one hold-down bolt while watching the dial.
Record the movement. If the dial moves more than 0.002 inches, you have soft foot at that location.
Tighten the bolt and repeat this process for the remaining three feet.
Insert precision stainless steel shims under the affected feet to eliminate the gap.
Re-torque all bolts and verify the soft foot is gone before proceeding.
Check for pipe strain and ductwork stress. Disconnect the flexible connections at the fan inlet and outlet. If the fan casing springs upward or shifts sideways, the ductwork is pulling the equipment out of alignment. Correct the ductwork supports before proceeding with the shaft alignment. The fan housing must sit in a neutral state.
Shaft misalignment occurs in three primary dimensions. You must measure and correct all three simultaneously to achieve collinearity. Fixing one dimension while ignoring the others leaves the equipment vulnerable to failure.
Parallel misalignment, also known as offset misalignment, happens when the shaft centerlines are parallel but do not align vertically or horizontally. Imagine two parallel train tracks running side by side. The shafts point in the exact same direction, but one sits higher, lower, or further to the side than the other. You correct vertical parallel misalignment by adding or removing shims under the motor feet. You correct horizontal parallel misalignment by sliding the motor side to side using jacking bolts.
Angular misalignment occurs when the shaft centerlines intersect at an angle. They are not parallel. This happens in the vertical plane (the motor tilts up or down) or the horizontal plane (the motor twists left or right). Correcting vertical angularity requires adding different shim thicknesses to the front versus the rear motor feet. Correcting horizontal angularity requires pivoting the motor on the baseplate.
Axial spacing is the third dimension. You must verify the correct distance between the shaft ends. This gap accommodates the coupling's magnetic center and ensures flush hub mounting. Improper axial spacing causes the coupling to stretch or compress during operation. This overloads the thrust bearings in the motor and the fan, leading to rapid heat generation and catastrophic failure.
The straightedge method is the oldest and least accurate way to check alignment. You place a precision steel straightedge across the outer rims of the coupling halves. You check the gap between the straightedge and the coupling at the 12, 3, 6, and 9 o'clock positions. You use a feeler gauge to measure the gap between the coupling faces to check for angularity.
This method is only acceptable for initial positioning during a new installation. It lacks the resolution required for modern industrial reliability standards. A straightedge cannot accurately measure angularity down to the thousandths of an inch. You should only rely on this method to get the motor close enough to attach precision instruments. Operating a fan based solely on a straightedge alignment poses a significant risk to bearing life.
The rim and face dial indicator method remains a trusted industry standard for high-accuracy alignment verification. It requires mechanical skill and mathematical calculation. You mount heavy-duty fixtures to the shafts or coupling hubs. One dial indicator sweeps the outer rim of the coupling to measure parallel offset. A second dial indicator sweeps the face of the coupling to measure angularity.
You zero the dials at the 12 o'clock position. You then rotate the shafts together, stopping at 90-degree intervals (3, 6, and 9 o'clock) to record the Total Indicator Reading (TIR). You use these TIR values to calculate the exact shim changes and horizontal moves required.
This method carries implementation risks. Bar sag is the most common error. The weight of the fixtures causes the mounting bars to deflect downward, corrupting the 6 o'clock reading. You must measure the bar sag beforehand by mounting the fixture on a rigid piece of pipe, zeroing it at the top, and rotating it to the bottom. You then mathematically subtract this sag value from your actual field readings. Reading errors and the mathematical complexity of calculating shim requirements slow down the process, especially for inexperienced technicians.
Laser shaft alignment represents the current best practice for evaluating and correcting direct drive configurations. This method replaces mechanical dials with laser emitters and digital detectors. You mount the sensors on the motor and fan shafts using chain brackets or magnetic bases.
You enter the machine dimensions into the digital display unit. This includes the distance between the sensors, the distance from the sensor to the coupling center, and the distances between the motor feet. You then rotate the shafts. Many modern laser systems require only a partial rotation (as little as 60 degrees) to capture a highly accurate reading. The software instantly calculates the exact shim additions and horizontal move values required to achieve perfect alignment.
Laser alignment eliminates bar sag entirely. The software automatically calculates thermal growth compensation based on your input parameters. Most importantly, the system generates verifiable, documented reporting for your commissioning records. This documentation proves the equipment meets OEM tolerances before startup.
The physical design of the fan dictates how you approach the alignment process. Standardized configurations require different measurement strategies to ensure operational stability.
AMCA standard direct drive arrangements heavily influence alignment procedures. In Arrangement 4, the fan wheel mounts directly on the motor shaft, and the motor is supported by the fan base. This eliminates the shaft-to-shaft coupling, meaning you do not perform traditional shaft alignment. Instead, you focus on the clearance between the wheel and the inlet cone. In Arrangement 8, the motor and fan have separate shafts connected by a coupling, but the motor sits on an independent pedestal. This requires rigorous laser alignment because the independent pedestals shift independently due to thermal growth or foundation settling.
When working with a plug fan in plenum applications, you face unique challenges. You must check the critical alignment between the fan wheel and the inlet cone. You measure the overlap and the radial gap to prevent aerodynamic stall and mechanical rubbing. This aerodynamic alignment is just as critical as the shaft coupling alignment. If the wheel sits off-center from the cone, the fan loses efficiency and generates turbulent airflow.
A single inlet centrifugal fan generates significant aerodynamic pull. The single-width impeller creates unequal pressure across the housing, pulling the shaft toward the inlet side. You manage these thrust loads and ensure the axial alignment accounts for this operational pull. The magnetic center of the motor must align with the operational center of the fan shaft under load.
Designs like the built-in forward curved fan and the external rotor centrifugal fan operate differently. These designs integrate the motor directly inside the impeller hub. They completely eliminate the traditional shaft-to-shaft coupling. For these units, alignment checks shift away from coupling measurements. Instead, you verify the concentricity of the entire rotating assembly within the scroll housing. You ensure strict dynamic balancing and verify that the external rotor maintains equal clearance from the stationary components throughout its rotation.
You cannot align a machine perfectly; you can only align it within an acceptable tolerance. These tolerances are dictated by the rotational speed of the equipment and the thermal characteristics of the operating environment.
Alignment tolerances tighten as the fan rotational speed (RPM) increases. According to ANSI/ASA S2.75 standards, a fan operating at 1200 RPM allows for a larger parallel offset than a fan operating at 3600 RPM. High-speed equipment generates destructive vibration from even microscopic misalignments. Always consult the OEM manual or standard vibration charts to determine the exact mil (thousandth of an inch) tolerance for your specific operating speed.
Standard Alignment Tolerances by Speed
| Operating Speed (RPM) | Acceptable Parallel Offset (mils) | Acceptable Angularity (mils/inch) |
|---|---|---|
| 900 | 4.0 | 1.5 |
| 1200 | 3.0 | 1.0 |
| 1800 | 2.0 | 0.7 |
| 3600 | 1.0 | 0.3 |
Thermal growth compensation is mandatory for industrial fans handling hot gases. Motors and fan housings expand as they heat up from ambient temperature to operating temperature. The fan pedestal handling 300°F air grows significantly taller than the motor pedestal sitting in 70°F ambient air. You calculate this expansion using the coefficient of thermal expansion for steel, the height of the centerline, and the temperature differential.
Once calculated, you implement intentional cold misalignment strategies. You deliberately set the fan shaft lower than the motor shaft while the equipment is cold. As the fan heats up, the pedestal expands, and the shaft grows into perfect hot alignment. Failing to account for thermal growth guarantees severe misalignment during actual operation.
Many technicians misunderstand coupling types and flexibility. Installing a flexible coupling does not excuse poor shaft alignment. Flex couplings accommodate minor operational movement and dampen torsional vibration. They do not fix sloppy installation. If you misalign a flexible coupling, the elastomeric element absorbs some shock, but the misalignment still transfers destructive radial forces directly to the bearings.
Even with advanced laser tools, the alignment process carries physical implementation risks. Technicians must control the mechanical variables during the final adjustments to lock in the correct tolerances.
Shifting during tightening is the most frustrating risk. You achieve perfect alignment on the screen, but when you apply final torque to the motor hold-down bolts, the motor twists out of tolerance. Mitigate this by implementing a crisscross torque sequence. Tighten the bolts in small increments, moving diagonally across the motor base. Re-verify the alignment with the laser after all hold-down bolts are fully secured to the final torque specification.
Shim pack compression ruins vertical alignment. If you stack too many thin shims under a motor foot, they act like a spring. When you tighten the bolt, the stack compresses unevenly. Mitigate this by using precut 304 stainless steel shims. Limit your shim packs to a maximum of four shims per foot. Consolidate thin shims into a single thicker shim whenever possible. Never use brass, carbon steel, or homemade shims, as they corrode and deform under pressure. Measure every shim with a micrometer before inserting it; stamped numbers are often inaccurate.
Bearing play masks true misalignment. If the shaft moves radially within the bearing housing while you rotate it, your dial or laser readings become erratic. Mitigate this by always rotating the shafts in the same direction during checks. This keeps the thrust and radial loads consistent against the bearing rollers, providing a stable centerline for measurement.
Post-alignment safety hazards cause severe workplace injuries. Leaving tools on the baseplate or operating the equipment without guards is dangerous. Mitigate this through strict procedural checklists. Mandate the reinstallation and inspection of all coupling guards and safety enclosures before final commissioning. Ensure no tools, shims, or rags remain near the rotating assembly before authorizing powered operation.
Take the following actions to secure your equipment reliability and finalize your alignment procedures:
Review your OEM manuals to identify the specific cold-alignment targets and thermal growth offsets for your specific fan models.
Audit your current maintenance tooling to ensure your technicians have access to calibrated laser alignment systems and precut stainless steel shims.
Implement a mandatory soft foot check protocol before any shaft alignment begins on the facility floor.
Establish a baseline vibration signature immediately after completing the alignment to monitor future bearing health.
A: Yes. While they lack belts, direct drive fans utilizing couplings require highly precise shaft-to-shaft alignment. Proper alignment prevents premature bearing failure, reduces mechanical seal wear, and eliminates destructive vibration across the equipment base.
A: Alignment should be checked during initial installation, after any motor or bearing replacement, and annually as part of a predictive maintenance or vibration analysis program. Immediate checks are required if abnormal vibration is detected.
A: Parallel misalignment occurs when shaft centerlines are offset but parallel to each other. Angular misalignment occurs when the centerlines intersect at an angle. Both conditions can exist vertically and horizontally, and both must be corrected simultaneously.
A: No. Flexible couplings handle minor operational shifts and dampen torsional vibration, not compensate for poor installation alignment. Misaligned flexible couplings still transmit damaging radial and thrust forces directly to the bearings.
A: Motors and fan housings expand as they heat up to operating temperatures. This expansion changes the shaft centerline height. Alignment must be checked and set cold with specific offsets so that the shafts grow into perfect collinear alignment when hot.
A: Typically, no. Because the motor is built directly into the impeller hub, there is no external coupling to align. However, the entire rotating assembly must be precisely aligned within the stationary housing to maintain proper aerodynamic clearances and prevent rubbing.
