Introducing high-efficiency filters into a ventilation system fundamentally alters system dynamics. You transform theoretical airflow capacities into real-world performance bottlenecks on the job site. Failing to account for the exact pressure drop of filters—both clean and fully loaded—leads to undersized fans that fail to meet required air changes. When you miss these calculations, you end up with stagnant air and failed inspections. On the flip side, oversized fans waste energy, increase acoustic signatures, and risk motor burnout from over-amping. Accurate sizing requires mapping the filter's resistance against the specific performance curve of the equipment. We break down how to calculate total static pressure, evaluate impeller designs, account for annual energy consumption, and specify the correct fan architecture for sustained performance. You will learn exactly how to match your hardware to the realities of heavy filtration.
Filter Loading Changes the Working Point: A fan must be sized not just for the initial clean filter resistance, but for the "final" or dirty pressure drop to ensure consistent airflow over the maintenance cycle.
Clean Filters Pose Over-Performance Risks: Operating with brand-new filters lowers system resistance, which can cause the fan to push a higher-than-design flowrate, potentially overloading sensitive motors.
Impeller Geometry Dictates Pressure Capabilities: Different blade designs react differently to static pressure changes; selecting the wrong impeller type can lead to catastrophic airflow loss as filters load.
System Resistance Curves are Non-Negotiable: Accurate fan sizing requires plotting the exact intersection of the cabinet centrifugal fan’s performance curve and the ductwork/filter resistance curve.
VFD Integration Mitigates Sizing Risks: Utilizing Variable Frequency Drives allows a slightly oversized fan to operate efficiently with clean filters and ramp up as pressure drop increases, optimizing annual fan power consumption.
Defining the baseline metrics required for system success begins with maintaining target CFM (Cubic Feet per Minute) regardless of the filter state. When you integrate filtration into a ventilation network, you introduce a physical barrier that restricts airflow. The primary success criterion is ensuring the fan delivers the required volume of air to satisfy building codes, maintain indoor air quality, or exhaust hazardous fumes, even as the filter media captures particulates and becomes restrictive. Engineers establish a performance envelope where the minimum acceptable airflow is achieved at the maximum anticipated system resistance. Failing to frame this problem correctly at the design stage guarantees operational failures down the line. You will find yourself returning to the job site to troubleshoot low airflow complaints simply because the filter did its job and caught dirt.
Pressure drop represents the loss of static pressure as air forces its way through the restrictive media of a filter. We measure this in inches of water gauge (in. w.g.) or Pascals (Pa) using a manometer across the filter bank. Several physical factors dictate this resistance. Filter media density determines how tightly packed the fibers are; denser media captures smaller particles but requires more mechanical force to push air through. Air velocity also plays a major role. As the speed of the air approaching the filter face increases, the pressure drop rises exponentially. If you push 2000 CFM through a 24x24 filter, the resistance will be significantly higher than pushing 1000 CFM through that same filter.
Design considerations often reveal counterintuitive solutions in the field. Upgrading from standard 1-inch flat filters to thicker, 4-inch deep-pleated filters in tight enclosure spaces can actually reduce the overall pressure drop. Deep pleats drastically increase the total surface area of the media exposed to the airstream. This expanded surface area lowers the face velocity of the air passing through any given square inch of the filter. You reduce the aerodynamic resistance while simultaneously increasing the dirt-holding capacity of the unit. We frequently use this trick when retrofitting older air handlers to accept MERV 13 filters without replacing the blower motor.
Understanding the distinction between initial and final resistance dictates accurate equipment specification. Clean pressure drop refers to the resistance of a brand-new filter straight out of the box. Final pressure drop denotes the maximum resistance the filter will reach before it must be replaced or cleaned. Manufacturers provide both figures on their cut sheets. The gap between these two numbers dictates the operational variance the fan must handle over a maintenance cycle.
The clean filter danger is a frequently overlooked phenomenon in HVAC design. When resistance is low, the fan operates further to the right on its performance curve, moving a significantly higher flowrate than intended. This excessive airflow leads to high face velocities that can physically tear filter media, pull dirt through the fibers, create unacceptable noise levels at the grilles, and cause the motor to draw excessive amperage. Relying solely on the clean pressure drop for sizing calculations guarantees system underperformance mid-cycle. The fan will lack the static pressure capability to push air through the filter once it begins to load with particulates, dropping your CFM below code requirements.
A ventilation network is defined by its system resistance curve, which illustrates the parabolic relationship between airflow and static pressure in a fixed system. The fundamental aerodynamic law dictates that pressure varies as the square of the airflow. If you want to double the airflow through a specific duct and filter arrangement, you must overcome four times the static pressure. Mapping this curve requires calculating the resistance of all components—ductwork, elbows, dampers, heating coils, and filters—at various flow rates. When you plot this curve on a graph, it sweeps upward exponentially. Any change to the physical system, such as a filter loading with dust, alters the steepness of this curve. A dirty filter makes the curve steeper, meaning you need more pressure to move the same amount of air.

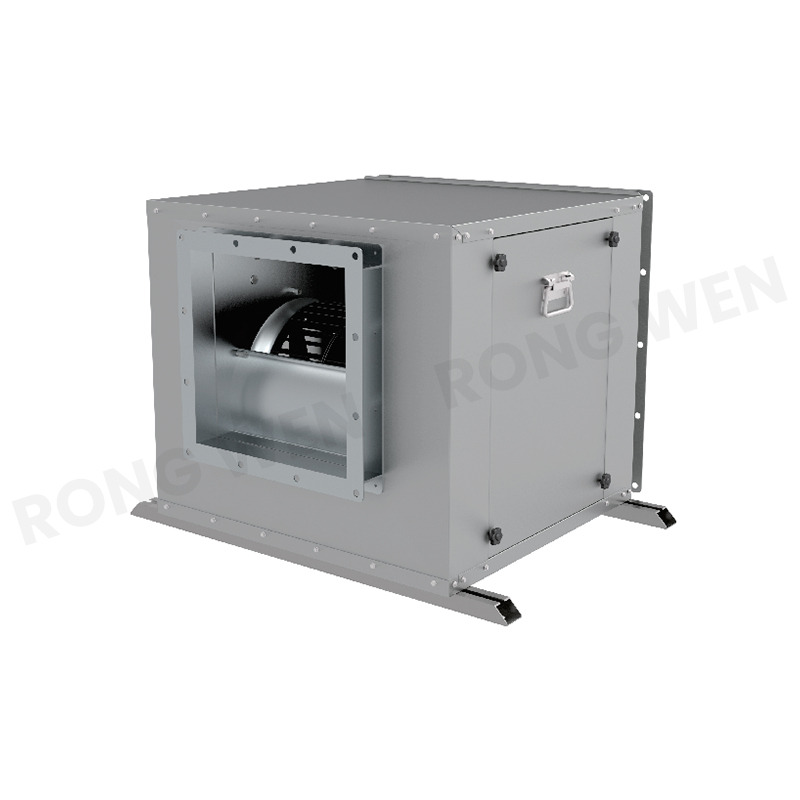

The working point is the exact intersection where the fan's pressure capability matches the system's resistance. When you overlay the system resistance curve onto the performance curve of a Cabinet Centrifugal Fan, the point where the two lines cross dictates the actual CFM and static pressure the system will deliver in the real world. You cannot guess this point; you must plot it.
Adding a filter, or allowing an existing filter to load with dirt, steepens the system resistance curve, shifting it to the left. As the curve shifts left, the intersection point moves higher up the fan's performance curve. This results in a higher operating static pressure but a lower actual airflow. If the fan curve is relatively flat, a small increase in filter pressure drop will cause a massive reduction in CFM. Identifying this dynamic working point ensures the system remains compliant with airflow requirements throughout the entire maintenance cycle. We always plot three working points: clean filter, mid-life filter, and dirty filter.
Table: Airflow Reduction vs. Filter Loading Stage
| Filter State | Static Pressure (in. w.g.) | System Curve Shift | Resulting Airflow (CFM) |
|---|---|---|---|
| Clean (New) | 0.30 | Baseline | 4,200 (Design Max) |
| Mid-Life | 0.65 | Moderate Left Shift | 3,850 |
| Dirty (Final) | 1.00 | Steep Left Shift | 3,400 (Design Min) |
Changes in the working point directly affect Brake Horsepower (BHP) requirements and the risk of overloading the motor. As the working point shifts along the fan curve due to changing filter resistance, the mechanical power required by the impeller fluctuates. Depending on the blade geometry, operating at a lower pressure with a clean filter might draw maximum horsepower. This pushes the motor past its nameplate rating if you did not specify a sufficient service factor. We see motors trip their thermal overloads constantly on new start-ups because the filters are clean and the system is moving too much air.
Lifecycle costs are heavily influenced by these dynamics. Forcing the fan to work harder against heavily loaded filters accelerates hardware deterioration. Bearings experience altered load profiles, belts slip under increased torque demands, and motors run hotter. Extended operation against high static pressure spikes electrical energy costs. Accurate sizing and timely filter maintenance keep operational efficiency high and prevent premature mechanical failures.
Accurate sizing begins with aggregating the pressure drops of every component in the airstream. You must calculate the resistance of straight duct runs, elbows, transitions, dampers, and heating or cooling coils at the target air velocity. Next, add the specific pressure drop of the filter media. Do not rely on generic rules of thumb. Consult the filter manufacturer's technical data sheet for the exact resistance at your design face velocity. The sum of these individual resistances equals the Total Static Pressure (TSP) the fan must overcome to deliver the required CFM.
Determine the target CFM required for the space based on code requirements.
Calculate the friction loss of the longest duct run (supply and return).
Add the pressure drops of all internal air handler components (coils, dampers, louvers).
Add the final (dirty) pressure drop of the selected filter media.
Select the fan model that meets the target CFM at the calculated Total Static Pressure.
Restrictive ductwork compounds filter resistance, creating an artificially high static pressure environment that chokes fan performance. Ensuring that ductwork and return air drops are adequately sized prevents this issue, especially in tight enclosure spaces where physical constraints often lead to undersized sheet metal. A poorly designed return drop leading into a filter bank forces air to hit the filter face unevenly. This increases localized velocity and drives up the pressure drop on one side of the filter while leaving the other side clean. Optimizing transitions and maintaining low duct velocities (typically under 1500 FPM for main returns) minimizes parasitic pressure losses. You reserve the fan's energy for overcoming the necessary filter resistance rather than fighting bad duct design.
Establishing a robust sizing methodology requires targeting the midpoint or final pressure drop of the filter lifecycle, rather than the clean state. If a filter has a clean resistance of 0.3 in. w.g. and a recommended final resistance of 1.0 in. w.g., sizing the fan for 0.3 in. w.g. guarantees failure. Industry practice dictates sizing the fan to deliver the required CFM at the dirty pressure drop. Adding a safety margin of 10% to 15% to the total static pressure calculation provides a buffer against unforeseen installation restrictions or heavier-than-expected particulate loading. This safety factor ensures you have enough RPM available on the sheaves to speed the fan up during final air balancing.
Once the aerodynamic requirements are established, you evaluate the mechanical power required to drive the impeller. Review the fan performance data to determine the maximum Brake Horsepower (BHP) drawn across the entire operating range. Ensure the selected motor has a sufficient service factor to handle the highest horsepower draw on the curve. This prevents thermal overload during clean-filter operation, where airflow is highest and certain impeller designs draw peak power. Specifying a motor that covers the entire BHP curve guarantees electrical stability regardless of the filter's condition. We always size the motor for the non-overloading point of the curve to eliminate nuisance tripping.
Comparing how different blade geometries handle the variable static pressure introduced by loading filters is the most critical mechanical decision in the sizing process. The physical shape of the impeller blades dictates the aerodynamic performance curve, the power consumption profile, and the system's resilience to changing resistance. You cannot put a low-pressure wheel in a high-pressure application and expect it to survive.
Table: Impeller Geometry Performance Comparison
| Impeller Type | Pressure Handling | Motor Overload Risk | Ideal Application |
|---|---|---|---|
| Forward Curved | Low to Medium. Highly sensitive to resistance changes. | High. Motor can overload if pressure drops suddenly. | Clean air, low-pressure commercial ventilation. |
| Backward Inclined | Medium to High. Stable airflow against loading filters. | Low. Features a non-overloading horsepower curve. | Variable resistance systems, HEPA filtration, heavy grease. |
| Airfoil | High. Extremely efficient at high static pressures. | Low. Non-overloading characteristics. | Large-scale industrial exhaust, continuous heavy-duty operation. |
A forward curved cabinet fan is best suited for lower pressure, high-volume applications where the air is relatively clean and system resistance remains static. The blades curve in the direction of wheel rotation, allowing the fan to move large volumes of air at lower operating speeds, which keeps acoustic profiles quiet. However, this design carries a significant risk factor: it is highly sensitive to pressure changes. The performance curve is relatively flat, meaning a small increase in filter resistance causes airflow to drop sharply. If resistance suddenly decreases—such as when a loaded filter is replaced with a brand-new, low-resistance filter, or if a filter is accidentally left out—the airflow spikes. The motor will draw excessive amperage and overload almost immediately.
For systems incorporating high-efficiency filters, a backward inclined cabinet fan offers superior aerodynamic stability. The blades tilt away from the direction of rotation, generating a much steeper performance curve. This steep curve means that as the filter loads and static pressure increases, the reduction in actual airflow is minimal compared to a forward-curved design. Furthermore, this geometry inherently features a non-overloading horsepower curve. The maximum brake horsepower occurs near the middle of the operating range. If system resistance drops completely, the power requirement actually decreases. This ensures the motor remains protected across all operating points, regardless of filter state.
Evaluating equipment for specialized environments requires matching the impeller to the contaminant. When specifying a kitchen exhaust centrifugal fan, engineers must account for the massive and highly variable resistance of grease baffle filters. As grease accumulates, the pressure drop across the hood spikes dramatically. Contrasting the options reveals clear operational winners. A backward inclined kitchen fan handles the variable resistance of loading grease baffles with ease, maintaining steady exhaust rates to keep smoke out of the kitchen while protecting the motor. In contrast, utilizing a forward inclined kitchen fan is less optimal for heavy grease applications. The tightly spaced blades are difficult to clean, and the wheel's extreme sensitivity to rapid pressure changes causes the hood to lose capture and containment as soon as the filters get dirty.
Striking the exact balance in fan sizing prevents cascading system failures. Undersizing the equipment leads to an immediate failure to meet ventilation codes, resulting in poor indoor air quality, inadequate fume extraction, and equipment overheating due to lack of airflow. When the fan lacks the static pressure capability to push through a loaded filter, the system effectively suffocates. Oversizing introduces a different set of severe problems. An oversized fan generates excessive noise, wastes massive amounts of electrical energy, and creates high face velocities. These high velocities can physically damage filter media, blow the pleats out of their frames, or cause particulate bypass, rendering the filtration system useless.
Upgrading to high-efficiency filters in an existing system often pushes the original fan beyond its performance limits. When retrofitting, you evaluate whether to replace the primary fan entirely or size an additional booster fan to cope with the new pressure drop. A booster fan placed in-line provides the necessary static pressure lift to overcome the denser filter media without overheating the original motor. However, this requires careful aerodynamic balancing. You must ensure the two fans do not fight each other, which leads to surging, stalling, and accelerated mechanical wear on the bearings and belts.
Integrating Variable Frequency Drives (VFDs) is the most effective strategy for managing dynamic filter resistance. A VFD allows you to run a slightly oversized fan at a lower RPM when filters are clean, delivering the exact required CFM without over-pressurizing the system or drawing excess power. As the filter loads, a differential pressure sensor installed across the filter bank sends a 4-20mA signal to the VFD. The drive automatically increases the motor speed, overcoming the rising resistance and maintaining a constant airflow. The initial capital expenditure of the VFD and sensors is rapidly offset by massive reductions in annual energy consumption and the extension of filter replacement intervals.
Calculate your total system static pressure meticulously, incorporating fully loaded filters and all ductwork constraints before ordering equipment.
Request certified fan performance curves from manufacturers to verify the exact working point under dirty filter conditions.
Verify motor service factors and BHP requirements across the entire operating spectrum to prevent thermal overloads.
Implement Variable Frequency Drives (VFDs) paired with pressure sensors to automate airflow consistency and reduce energy waste.
A: You calculate it by consulting the filter manufacturer's technical data, which lists the resistance at specific air velocities. You match your system's target face velocity to their charts to find the exact initial and final pressure drop values. On-site, you measure it using a manometer with static pressure tips placed before and after the filter bank.
A: As the filter gets dirty, system resistance increases. The fan is forced to operate higher up its performance curve, which reduces the actual airflow delivered. If resistance exceeds the fan's maximum static pressure capability, airflow drops to near zero, risking motor overheating and complete system failure.
A: You must size the fan based on the dirty (final) filter pressure drop, or at least a calculated midpoint. Sizing for the clean pressure drop guarantees the fan will lack the power to move air once the filter begins capturing particulates and resistance increases.
A: Backward inclined fans feature a steep performance curve and a non-overloading horsepower characteristic. This allows them to maintain relatively stable airflow even as filter resistance increases, while protecting the motor from drawing excessive amperage if system pressure fluctuates.
A: Yes, increasing fan speed boosts static pressure capability, but it also exponentially increases the brake horsepower required. You can only increase speed if the motor has sufficient capacity to handle the higher load without burning out, and if the fan wheel is rated for the higher RPM.
A: If system pressure drops suddenly—like when replacing a dirty filter with a clean one—a forward curved fan will move significantly more air. Because its horsepower curve is overloading, this sudden increase in airflow causes the motor to draw excessive amperage, often tripping the breaker or burning out the motor.
