Balancing rotational speed, static pressure, and volumetric flow rate without compromising system stability remains a fundamental engineering challenge in HVAC and industrial ventilation design. Miscalculating fan speed requirements introduces severe operational risks to any air movement system. Improper speed scaling in forward curved designs frequently leads to catastrophic motor overload, excessive energy consumption, or a complete failure to meet baseline CFM requirements. When a system demands specific air exchange rates, relying on guesswork for rotational dynamics guarantees underperformance or hardware failure. We will deconstruct the speed-to-airflow relationship, analyze the aerodynamic realities of fan curves, and provide a framework for specifying the correct fan topology based on system resistance and control strategies. Understanding how a forward curved centrifugal fan responds to speed variations ensures precise airflow delivery while protecting the underlying electrical infrastructure from thermal overload.
Direct Proportionality: Airflow volume (CFM) in a forward curved centrifugal fan scales directly with rotational speed (RPM), but power consumption increases at the cube of the speed, necessitating precise motor sizing.
The Overload Risk: Unlike backward curved alternatives, forward curved fans possess an overloading power curve; operating at high speeds with lower-than-expected system resistance will cause motor failure.
Low-Speed, High-Volume Efficiency: Forward curved blades are optimized to move high volumes of air at relatively low operating speeds, producing moderate static pressure while remaining highly energy-efficient compared to radial blade designs.
Control Strategy Limitations: While Variable Frequency Drives (VFDs) can effectively modulate speed and airflow, designers must account for the fan's specific stall regions and efficiency drop-offs at reduced RPMs.
Optimal airflow generation in low-pressure, high-volume applications requires specific aerodynamic profiles. You define success by the ability to move massive quantities of air efficiently without generating excessive acoustic noise or requiring massive electrical inputs. We match the physical blade geometry to the specific fluid dynamics required by the operating environment. When space is limited and high flow rates are mandatory, standard radial designs fail to meet acoustic and efficiency targets.

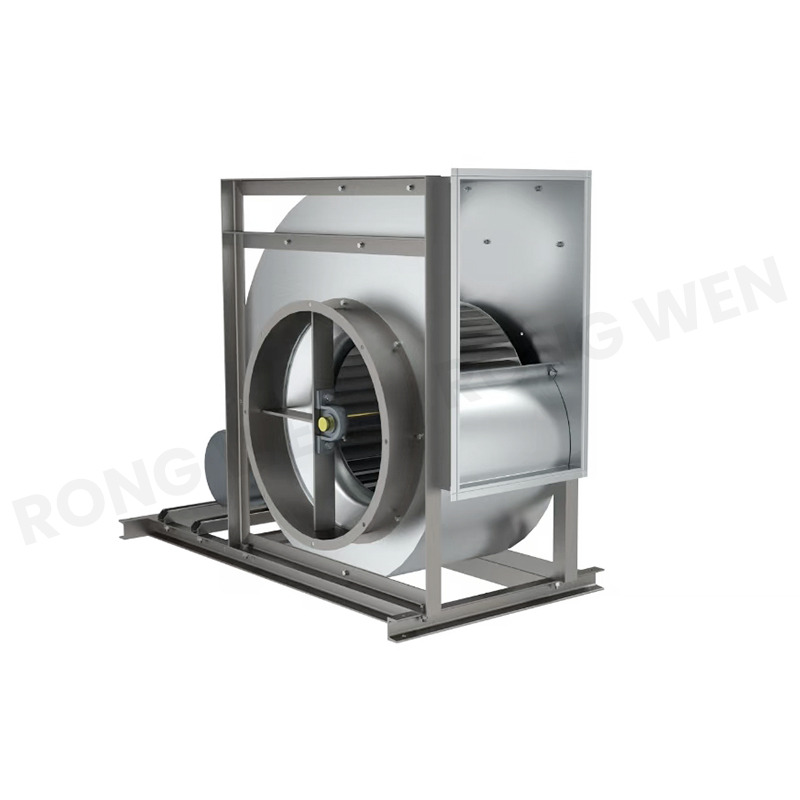

The physical configuration features numerous shallow blades curving in the direction of the fan wheel's rotation. Field technicians often call this a squirrel cage design. It creates a highly effective scooping action. Here is exactly how the fluid dynamics play out inside the housing:
The impeller rotates, and the forward-facing blades physically capture the incoming air stream.
The blades impart high kinetic energy to the air at the blade tips, accelerating it forward.
The fluid is thrown outward into the scroll housing.
The expanding shape of the scroll housing slows the air down, converting velocity pressure into usable static pressure.
This scooping mechanism differs fundamentally from the lifting action seen in airfoil designs or the sheer centrifugal force utilized by radial blades. You achieve target volumetric flow rates at significantly lower RPMs compared to a standard radial or backward-inclined centrifugal fan. The forward curve accelerates the air to a velocity greater than the tip speed of the impeller itself. Because the required rotational speed remains low to achieve a given CFM, you drastically reduce the mechanical vibration and aerodynamic noise generated by the fan wheel. Lower speed yields quieter operation and moderate static pressure capabilities. We see this design excel in residential furnaces, packaged air handlers, and makeup air units where overcoming massive duct resistance is not the primary objective.
The Affinity Laws dictate how changes in rotational speed impact airflow, pressure, and power consumption. These mathematical relationships are non-negotiable physical realities. You evaluate these dimensions to predict system performance accurately when adjusting drive sheaves or programming variable frequency drives on the job site.
The first fan law states that the volumetric flow rate (CFM) varies directly and proportionally with the ratio of the fan speed (RPM). If you need more air, you spin the wheel faster. For example, if a fan delivers 4,000 CFM at 1,000 RPM, increasing the speed to 1,200 RPM yields exactly 4,800 CFM. This linear relationship makes calculating expected airflow straightforward when adjusting VFD frequencies. A VFD operating at 48 Hz instead of a baseline 60 Hz reduces the speed by 20%, subsequently dropping the airflow by exactly 20%.
The impact on static pressure and power consumption follows much steeper curves. The second law dictates that static pressure varies as the square of the speed ratio. A 20% increase in speed results in a 44% increase in static pressure capability. The third law is the most critical for system safety: power requirement varies as the cube of the speed ratio.
Let's walk through a practical field calculation. Assume you have a makeup air unit delivering 10,000 CFM at 1.5 inches of water column (in. w.g.) static pressure, spinning at 800 RPM, and drawing 5 brake horsepower (BHP). The facility manager requests an increase to 12,000 CFM to meet new ventilation codes.
Calculate the new speed requirement. The ratio of new flow to old flow is 12,000 / 10,000 = 1.2. Multiply the original 800 RPM by 1.2 to get the new required speed of 960 RPM.
Calculate the new static pressure. Square the speed ratio (1.2 x 1.2 = 1.44). Multiply the original 1.5 in. w.g. by 1.44 to get a new system resistance of 2.16 in. w.g.
Calculate the new power requirement. Cube the speed ratio (1.2 x 1.2 x 1.2 = 1.728). Multiply the original 5 BHP by 1.728 to get a new power draw of 8.64 BHP.
This calculation proves why you cannot simply speed up a fan without checking the motor nameplate. A 20% increase in airflow resulted in a 72.8% increase in power consumption. If the original motor was only rated for 7.5 HP, the new 8.64 BHP requirement will instantly overload it, requiring a full motor and drive replacement before adjusting the speed.
Fan Law Multipliers for Speed Adjustments
| Speed Increase | Airflow (CFM) Multiplier | Static Pressure Multiplier | Power (BHP) Multiplier |
|---|---|---|---|
| 10% | 1.10x | 1.21x | 1.33x |
| 20% | 1.20x | 1.44x | 1.73x |
| 30% | 1.30x | 1.69x | 2.20x |
Actual fan performance is dictated entirely by the intersection of the manufacturer's fan curve and the physical system resistance curve. A fan does not operate in a vacuum. It operates against the friction of ductwork, the restriction of filters, and the geometry of dampers. The point where the pressure generated by the fan exactly matches the pressure required to push air through the system is the operating point. Altering fan speed shifts the fan curve up or down, establishing a new operating point along the parabolic system resistance curve.
Reading the performance curve of a forward curved wheel requires understanding its unique aerodynamic limitations. The left side of the pressure curve features a characteristic dip or stall region. In this zone, the pressure curve drops before rising to its peak. Operating a fan to the left of peak pressure causes aerodynamic stall. The air separates from the blade surfaces, causing surging, severe vibration, and highly unstable airflow. You must ensure the selected operating speed keeps the performance point safely to the right of this unstable region, even during minimum flow conditions.
The right side of the fan curve represents wide open or free delivery conditions, introducing a massive implementation reality: the motor overload risk. Because the blades curve forward, they continuously add kinetic energy to the air stream. The forward curved geometry does not self-limit.
Several common field scenarios cause unexpected drops in system resistance, leading to motor overload:
Contractors leaving large duct access doors open during construction.
Operating the air handler before installing the final HEPA or MERV filter banks.
Disconnected or blown-out flexible duct runs in the ceiling plenum.
Fire dampers failing in the open position during initial system testing.
As airflow volume spikes in these scenarios, the motor draws excess current at a given speed to maintain the RPM against the increased mass of air being moved. This leads directly to thermal overload. The power curve rises continuously as flow increases, making accurate system resistance calculations absolutely mandatory.
Validating specification choices requires comparing forward curved models against alternative aerodynamic designs. Different blade geometries solve different fluid dynamic problems. Selecting the wrong topology forces the system to operate inefficiently, requiring excessive speeds to meet baseline targets or demanding oversized motors to handle pressure spikes.
Contrasting a forward curved wheel with a backward curved centrifugal fan highlights distinct speed requirements and power characteristics. Backward curved blades lean away from the direction of rotation. This geometry requires the impeller to operate at significantly higher rotational speeds to achieve the same volumetric airflow as a forward curved wheel. However, the backward curved design features a non-overloading power curve. As airflow increases past the point of maximum efficiency, the power requirement actually drops. Furthermore, backward curved wheels offer higher peak static efficiency, making them superior for high-pressure industrial applications where energy consumption over long operating hours is heavily scrutinized.
Integration into packaged systems often dictates the choice of topology based on physical constraints. The use of forward curved wheels is standard in a cabinet centrifugal fan, such as those found in air handling units or fan coil units. In these applications, internal cabinet space is strictly limited, and low-speed, quiet operation is heavily prioritized over high static pressure generation. The forward curved wheel delivers massive air volumes without requiring a massive scroll housing or generating disruptive acoustic frequencies.
To further optimize space and thermal management, designers frequently specify an external rotor centrifugal fan configuration. In this setup, the motor stator is fixed inside, and the rotor spins around it, directly attached to the impeller hub. This saves significant axial space within the housing, allowing for a more compact cabinet design. Placing the motor directly within the high-velocity air stream optimizes motor cooling, extending bearing life and allowing the system to safely handle the continuous duty cycles demanded by commercial HVAC applications.
Aerodynamic Topology Comparison
| Feature | Forward Curved Blades | Backward Curved Blades |
|---|---|---|
| Operating Speed (RPM) | Low | High |
| Power Curve Characteristic | Overloading (rises continuously) | Non-overloading (peaks and drops) |
| Static Efficiency | Moderate (55% - 65%) | High (75% - 85%) |
| Acoustic Profile | Very quiet at low speeds | Louder, requires sound attenuation |
| Primary Application | Low-pressure HVAC, packaged units | High-pressure industrial, exhaust systems |
Modulating airflow by altering fan speed in active systems requires precise control mechanisms. Modern ventilation systems rarely operate at a single, static design point. Occupancy changes, temperature fluctuations, and process demands require the system to scale airflow up or down dynamically. Assessing the methods for this modulation reveals stark differences in energy consumption and mechanical wear.
Reducing speed via a Variable Frequency Drive (VFD) is exponentially more energy-efficient than artificially increasing system resistance with mechanical discharge dampers. Dampers work by choking the airflow, forcing the fan to ride up its pressure curve while still consuming near-full power. The fan works harder to move less air. A VFD slows the rotational speed of the motor. Because power consumption drops at the cube of the speed reduction, slowing a fan by 20% reduces power consumption by nearly 50%. This cubic energy savings makes VFD integration the standard for modern airflow control.
VFDs allow the fan to ride the system curve effectively, maintaining aerodynamic efficiency at partial loads. As filters load with particulate matter over time, the system resistance gradually increases, causing airflow to drop. VFDs allow operators to safely increase fan speed to compensate for this filter loading, restoring baseline flow without artificially oversizing the fan during the initial clean-filter phase. The drive simply ramps up the frequency to overcome the added static pressure.
Speed control strategies have strict mechanical limitations. Minimum speed thresholds are required to maintain adequate motor cooling. Standard induction motors rely on shaft-mounted cooling fans. If the motor spins too slowly, it overheats. External rotor designs mitigate this somewhat by placing the motor in the primary airstream, but minimum velocities are still required. Operating at excessively low RPMs can prevent the motor bearings from maintaining their hydrodynamic lubrication film, leading to premature bearing wear. You must program VFDs with hard lower limits to prevent the fan from dropping into the aerodynamic stall region or damaging the electrical components.
When integrating VFDs to control fan speed, you must also address the electrical side effects. VFDs generate high-frequency pulse width modulation signals that induce shaft voltages in the motor. If left unmitigated, these voltages discharge through the motor bearings, causing electrical fluting, pitting, and eventual mechanical failure. Always specify shaft grounding rings on any motor driven by a VFD. Ensure the motor insulation is inverter-rated to handle the voltage spikes associated with reduced-speed operation.
Deploying forward curved fans requires actionable engineering safeguards. The theoretical performance mapped on a manufacturer's curve assumes ideal inlet and outlet conditions. Real-world installations rarely provide ideal aerodynamics. Failing to account for installation constraints drastically alters the speed-to-airflow relationship, rendering initial calculations obsolete.
Clearance and housing constraints are primary failure points. Applying unintended resistance to the suction or exhaust side causes an immediate drop in volume flow rate. This phenomenon, known as system effect, destroys the uniform velocity profile required by the forward curved blades. System effect artificially alters the system resistance curve, pushing the operating point higher up the pressure curve than anticipated. The fan moves less air at the design speed, forcing operators to increase the RPM. This unpredictable speed-to-airflow ratio rapidly consumes available motor horsepower.
Common causes of system effect include:
Placing an elbow directly on the fan discharge without adequate straight duct length.
Installing the fan inlet too close to a mechanical room wall, starving the wheel of air.
Using abrupt transitions or bullhead tees immediately after the fan housing.
Improperly sizing the flexible canvas connections, causing them to sag into the airstream.
Specifying adequate motor margins is the most critical mitigation strategy. Because forward curved blades possess an overloading power curve, any drop in system resistance causes a massive spike in airflow and power draw. You size motors with adequate service factors, typically specifying a motor 15% to 20% above the calculated brake horsepower at the design operating point. This buffer ensures that if ductwork is modified, or if the fan operates in a run-out condition during commissioning, the motor possesses the thermal capacity to handle the increased load without tripping the overcurrent protection devices.
Field Troubleshooting Speed and Airflow Issues
| Symptom | Potential Aerodynamic Cause | Corrective Action |
|---|---|---|
| Motor tripping on high amps | System resistance lower than design (run-out) | Restrict airflow with balancing dampers or reduce fan RPM. |
| Low CFM at design RPM | System effect at fan inlet or dirty filters | Clear inlet obstructions, replace filters, or increase RPM if motor HP allows. |
| Severe fan surging/vibration | Operating in aerodynamic stall region | Increase system airflow demand or reduce fan RPM to shift operating point right. |
| Premature bearing failure | Operating below minimum VFD frequency | Reprogram VFD minimum Hz limits to maintain hydrodynamic lubrication. |
Map exact system resistance curves against manufacturer fan curves before finalizing equipment schedules to avoid operating in aerodynamic stall regions.
Verify motor sizing for run-out conditions to prevent thermal overload during system commissioning, filter changes, or unexpected duct pressure drops.
Consult with vendors on integrating external rotor configurations or VFD-compatible models to maximize spatial efficiency in tight mechanical rooms.
Establish hard minimum speed limits on all variable frequency drives to maintain adequate motor cooling and prevent premature bearing wear.
A: Forward curved blades continuously add kinetic energy to the air stream due to their geometry, creating a rising power curve. If system resistance drops below calculated levels, the fan moves a massive volume of air. Moving this excess air mass at a constant rotational speed causes a severe spike in electrical current draw, leading directly to motor thermal overload.
A: Backward curved blades lean away from the direction of rotation. This aerodynamic profile generates less velocity at the blade tip, requiring the fan wheel to spin at significantly higher rotational speeds to achieve the same volumetric airflow as a forward curved fan.
A: Yes, VFDs effectively control airflow by reducing motor speed, offering massive energy savings over mechanical dampers. They also allow speed increases to compensate for filter loading. Strict minimum speed limits must be programmed to ensure adequate motor cooling and prevent the fan from entering unstable stall regions.
A: Operating at excessively low speeds prevents the fan from generating enough static pressure to overcome system resistance. This pushes the operating point to the left side of the fan curve into the aerodynamic stall region, resulting in airflow separation, severe surging, mechanical vibration, and noise.
A: They deliver high volumetric airflow at very low rotational speeds. This low-speed operation minimizes acoustic noise and mechanical vibration, making them ideal for compact, indoor air handling units where space is limited and quiet operation is a strict requirement.
A: Yes, the Affinity Laws apply universally to all centrifugal fan topologies, including forward curved, backward curved, and radial designs. The proportional relationships governing how speed changes affect airflow, pressure, and power remain constant regardless of the specific blade geometry.
